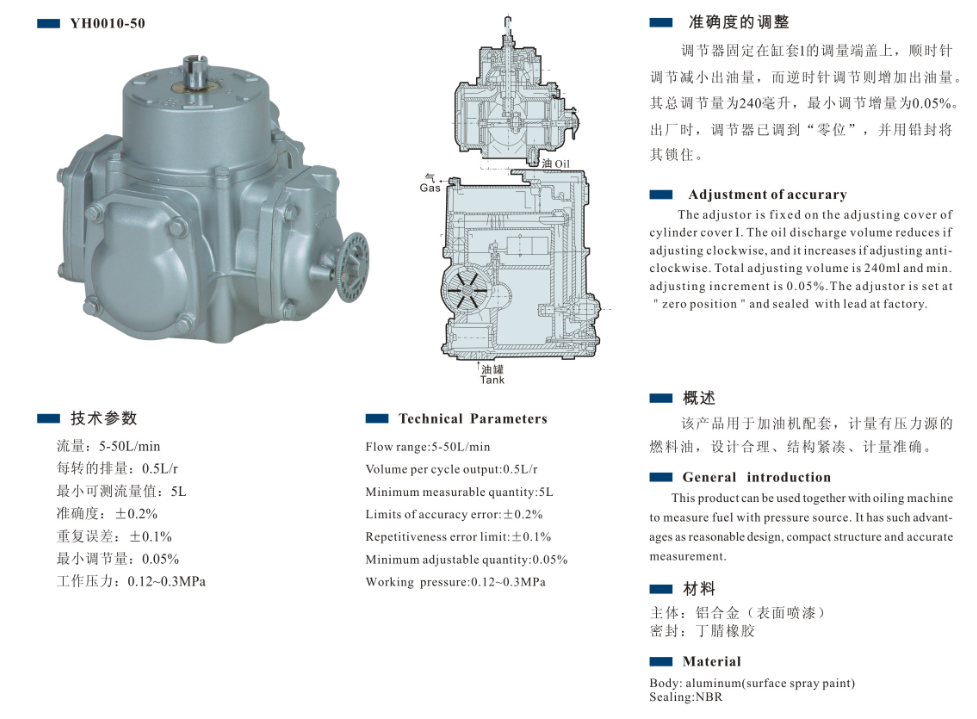

The flow meter can be used in the fuel dispenser to measure fuel with pressure source.It has such advantages as reasonable design, compact structure and accurate measurement.The adjustor is fixed on the adjusting cover of cylinder cover 1.The oil discharge volume reduces if adjusting clockwise,and it increases if adjusting anticlockwise.Total adjusting volume is 240ml and min.Adjusting increment is 0.05%.The adjustor is set at zero position and sealed with lead at factory.
This product can be used in the fuel dispenser to measure fuel with pressure source.It has such advantages as reasonable design, compact structure and accurate measurement.



Material

Body: Aluminum(surface spray paint)

Sealing: NBR

Features:

1) with new cast iron body and new concept of flow mechanism

2) Gives us excellent performanne of high accuracy and durable long life

3) Gear pump is a latest version product capable of installing in all type of dispenseras an OEM product with simple and easy hanging method

4) Also provides less maintenance and cost saving for long run

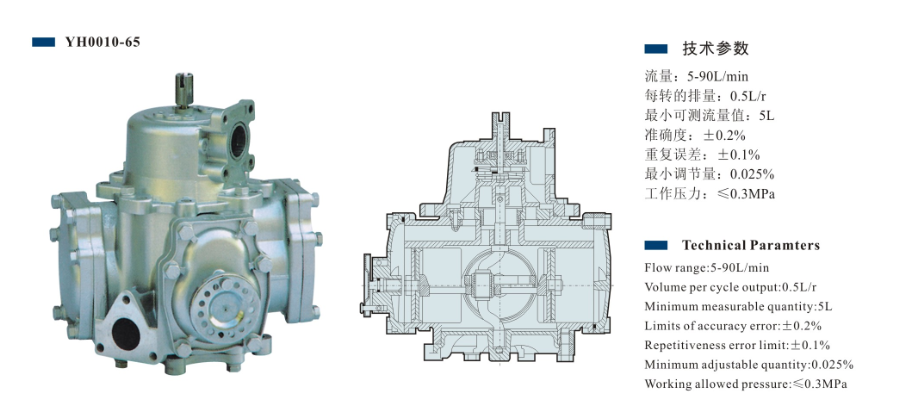

5) Flow range: 5-90L/min

6) Volume per cycle output: 0.5L/r

7) Min. Measurable quantity: 5L

8) Limits of accuracy error: ± 0.20%

9) Repetitiveness error limit:± 0.1%

10) Minimum Adjustable quantity: 0.025%

11) Working allowed pressure:≤0.3MPa







Sample Shipping:

By express (UPS,DHL, FedEx, , etc.)

Sample's lead time: 2-5 days

Mass productions' lead time: 7-31 days

By sea shipping with bulk order
