Vane pump
YH1000A
Air-eliminator dispenser vane pump is one of the devices that provide pressure oil for fuel oiling machine, continually separate and eliminate the gas in tested gasoline, kerosene, diesel oil and other mixed liquid. It is the combination of pressure regulating type single-acting vane pump and whirl type oil-gas separator.
Quantity

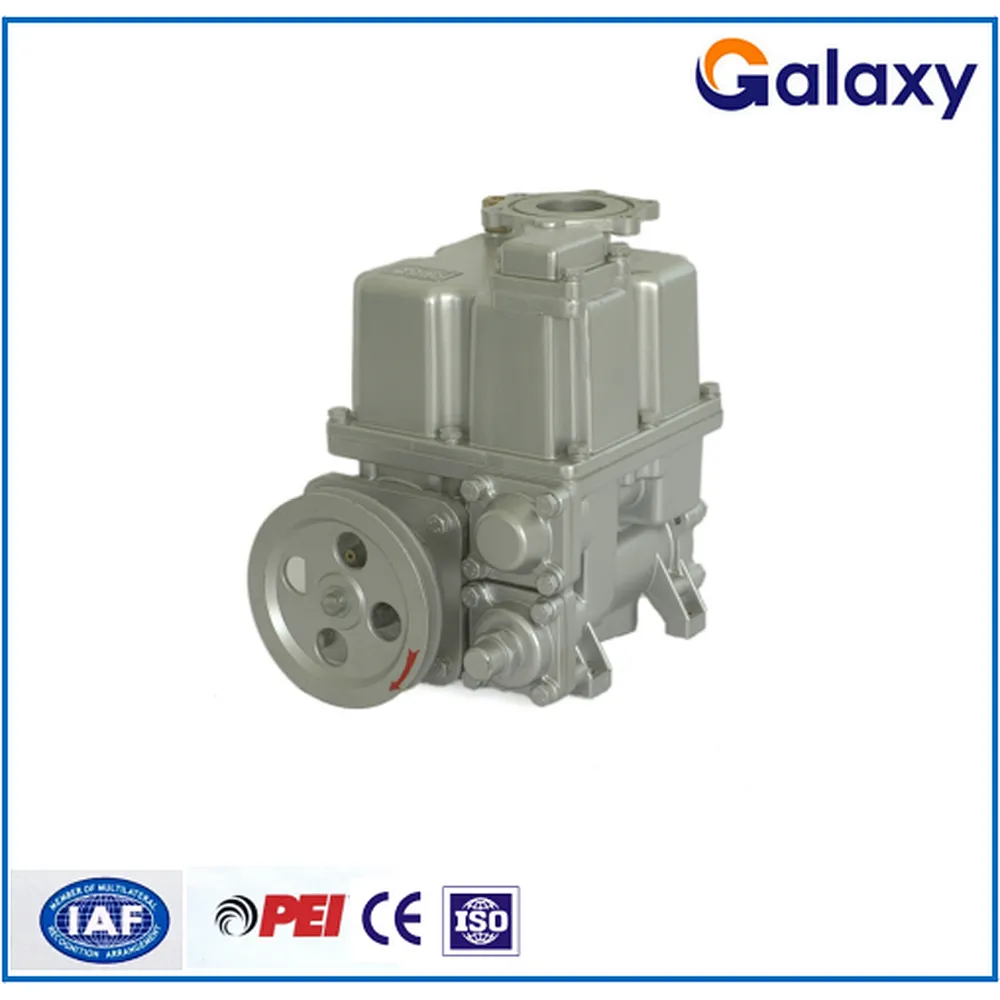

YH1000 Air-eliminator dispenser vane pump
Air-eliminator dispenser vane pump is one of the devices that provide pressure oil for fuel oiling machine, continually separate and eliminate the gas in tested gasoline, kerosene, diesel oil and other mixed liquid. It is the combination of pressure regulating type single-acting vane pump and whirl type oil-gas separator.
Features
l. Reasonable design and compact structure; body case is made of aluminum alloy sprayed with flash sliver lacquer, portable and beautiful.
2. Durable pump body of HT2003. Vane is made of hard graphite with advantages of self lubricated, good wear resistance and long using life.
4. Sealing materials is made of Chemigum and fluoroelastomer with advantages of oil resistance, cold resistance and reliable seal.
5. Excellent processing and low noise.
6. Oil-gas forced separation and strong capacity of oil-gas eparation.
7. High vacuum degree and suction lift.
8. Reasonable design of structure and large theoretic displacement.
9. Models A and C inlet: 1 1/2' ' . outlet: 3/4' ' ; Models B and D inlet: 2", outlet l' ' ; and many models for your option.
IO. Models A and B are directly flanged with flow meter while Models C and D are connected with flow meter via S pipe. It is of wide applicability.
Sample Shipping:
By express (UPS,DHL, FedEx, , etc.)
Sample's lead time: 2-5 days
Mass productions' lead time: 7-31 days
By sea shipping when bulk order
Air-eliminator dispenser vane pump is one of the devices that provide pressure oil for fuel oiling machine, continually separate and eliminate the gas in tested gasoline, kerosene, diesel oil and other mixed liquid. It is the combination of pressure regulating type single-acting vane pump and whirl type oil-gas separator.
| Basic Parameters | |||
| Basic Parameters | YH1000A,C | YH1000B,D | |
| Nominal flux L/min | When indicated valve of vacuum is 0.54Mpa | ≥50 | ≥70 |
| When indicated valve of vacuum is 0.04Mpa | ≥55 | ≥80 | |
| When indicated valve of vacuum is 0.1Mpa | ≥60 | ≥90 | |
| Vacuum degree of oil inlet Mpa | ≥0.054 | ≥0.054 | |
| Pressure resistance Mpa | 0.5 | 0.5 | |
| Speed rpm | 520 | 660 | |
| Noise dB(A) | ≤68 | ≤72 | |
| Applicable motor power kw | 0.75 | 1.1 | |
| Capacity of oil-gas separation % | Viscosity of oil is 1 mpas or less | ≥20% | ≥20% |
| ≥10% | ≥10% | ||
| Working life L | ≥5×106 | ≥5×106 | |
| Theoretic displacement L/r | 0.20 | 0.23 | |
Features
l. Reasonable design and compact structure; body case is made of aluminum alloy sprayed with flash sliver lacquer, portable and beautiful.
2. Durable pump body of HT2003. Vane is made of hard graphite with advantages of self lubricated, good wear resistance and long using life.
4. Sealing materials is made of Chemigum and fluoroelastomer with advantages of oil resistance, cold resistance and reliable seal.
5. Excellent processing and low noise.
6. Oil-gas forced separation and strong capacity of oil-gas eparation.
7. High vacuum degree and suction lift.
8. Reasonable design of structure and large theoretic displacement.
9. Models A and C inlet: 1 1/2' ' . outlet: 3/4' ' ; Models B and D inlet: 2", outlet l' ' ; and many models for your option.
IO. Models A and B are directly flanged with flow meter while Models C and D are connected with flow meter via S pipe. It is of wide applicability.
Sample Shipping:
By express (UPS,DHL, FedEx, , etc.)
Sample's lead time: 2-5 days
Mass productions' lead time: 7-31 days
By sea shipping when bulk order
