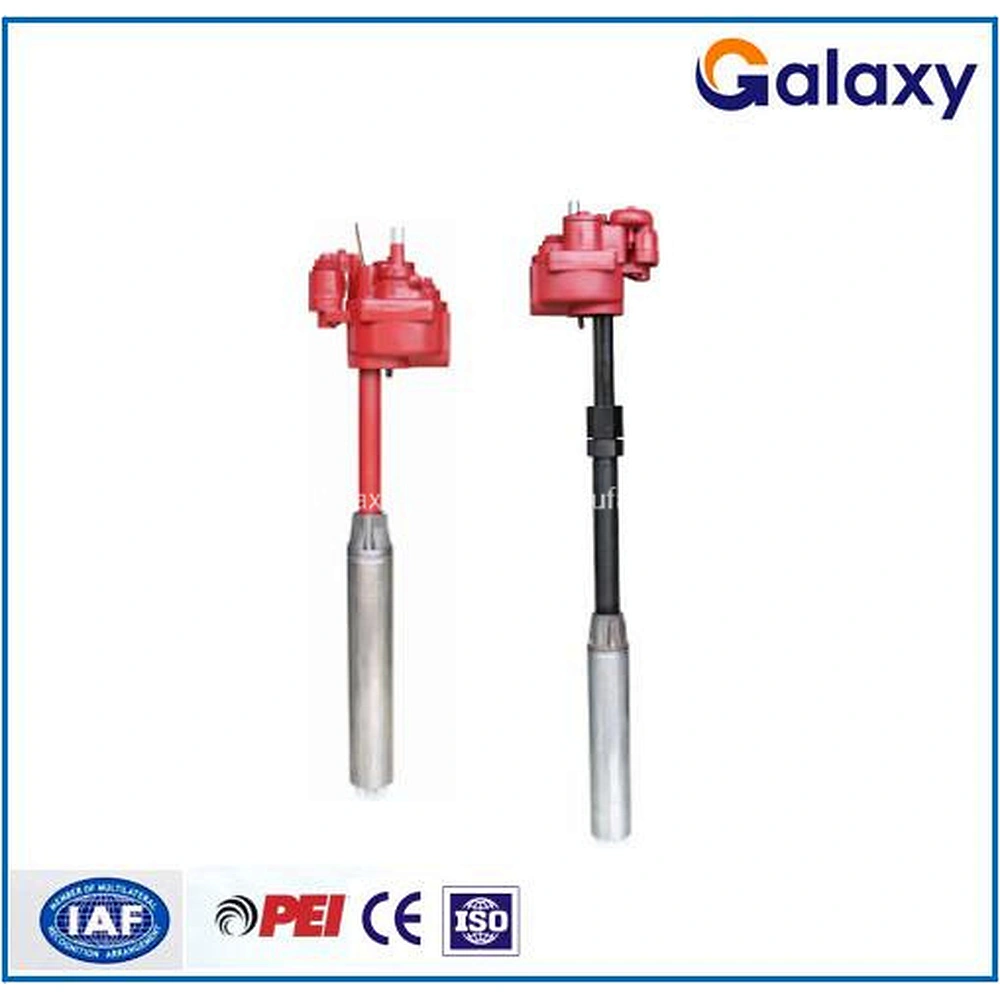

Automatic Submersible Fuel Pump for Station


 Can be equipped with a telescopic tube

 With turbo-charging technology,GALAXY Submersible pump can optimizes fuel flow to the dispensers;delivers faster,more reliable fuel flow for the lowest cost of ownership.Also it features with unique internal structure,making it easier and safest installation. Optimize the fuel flow of the distributor to save more cost for the gas station with faster speed and more reliable fuel flow; and with its unique structure, it makes installation easier and safer.




Remarks:1.The standard of expansion tube size ranges:1.7m-2.7m;

1. QYB for submersible turbine pump,P for Manifold,FSP for motor,B for three-phrase varial speed.

 Characteristics:


1. Superior motor performance, lower power consumption which delivers higher flow rates
2. Easy to install and service because of portable pump tube and motor components
3. Precise automatic pressure relief design can effectively avoid overflow that may occur during the maintenance
4. Integrated design of pump head, with built-in wire and junction box,making installation easy
5. Independent cavity design reduces the possibility of failure and safer
6. Can be raised design of check valve,eliminates the potential for fuel spills
7. More compatible component design makes the easier repair or replacement between different brands

Applications:

1.Can be widely used in diesel,gasoline,kerosene,gasoline mixtures and etc.,such as
100% Diesel
100% Gasoline
Methanol concentrations up to 15%
Ethanol concentrations up to 15%
MTBE, ETBE, or TAME concentrations up to 17-20%

1. Maximum flow rates ranges from 200L/min to 1000L/min,with power ranging from 0.75HP to 5HP;
2. Environment and transportation temperature range:+40ºC~ -50ºC
